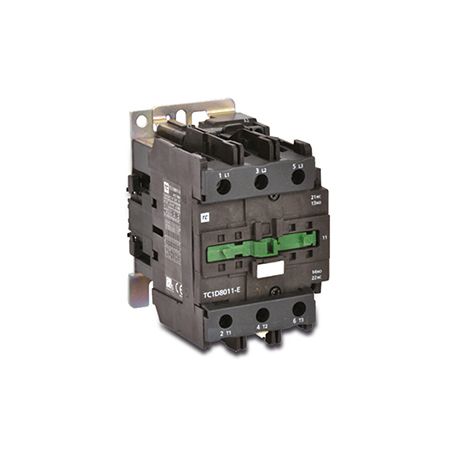

Exceed Contactors

Exceed Contactors
Exceed Contactors
Send Inquiry
Product Code : 06
Product Description

Technical Specifications


Exceed contactor

Control Relay

3P Contactor

TC1D0610E/TC1D0601E 3P Contactor

TC1D0910E/TC1D0901E 3P Contactor

TC1D1210E/TC1D1201E 3P Contactor

TC1D1810E/TC1D1801E 3P Contactor

TC1D2510E/TC1D2501E 3P Contactor

TC1D3210E/TC1D03201E 3P Contactor

TC1D4011E

3P Contactor

TC1D5011E

3P Contactor

TC1D6511E

3P Contactor

TC1D8011E

3P Contactor

TC1D9511E

3P Contactor

Utilisation Category


AC-3

AC-3

AC-3

AC-3

AC-3

AC-3

AC-3

AC-3

AC-3

AC-3

AC-3

Control circuit type

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

Poles description

4P

3P

3P

3P

3P

3P

3P

3P

3P

3P

3P

3P

Rated operational voltage (Ue for power circuit)

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

690V AC

Rated insulation voltage (Ui)

1000V

1000V

1000V

1000V

1000V

1000V

1000V

1000V

1000V

1000V

1000V

1000V

Rated impulse withstand volage

6kV

6kV

6kV

6kV

6kV

6kV

6kV

6kV

6kV

6kV

6kV

6kV

Mounting position

+30o

+30o

+30o

+30o

+30o

+30o

+30o

+30o

+30o

+30o

+30o

+30o

Conventional free air thermal current

10A

10A

25A

25A

32A

40A

50A

60A

80A

80A

125A

125A

Rated making capacity

250A

250A

250A

250A

300A

450A

550A

800A

900A

1000A

1100A

1200A
