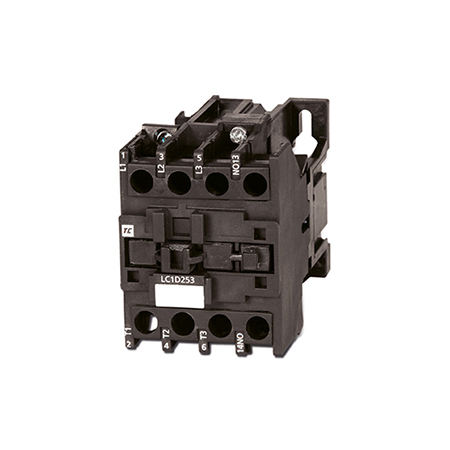

D Range Contactors

D Range Contactors
D Range Contactors
Send Inquiry
Product Code : 04
Product Description

Technical Specification


Type

CA 2 - DN

Rated Operational Voltage

(UE)

V

660

Rated Thermal Current

(1th) _< 40°C

A

10

Rated Operational Current / Power

(Ie)

_<55°C

A

AC 15 Duty as per ICE 60947

Rated making capacity at 415V


A

AC 15 Duty as per ICE 60947

Rated breaking capacity at 415V


A

AC 15 Duty as per ICE 60947

Power rating for motor

control AC 3 duty

220V

KW/HP

-

415V

KW/HP

-

500V

KW/HP

-

660V

KW/HP

-

Coil Rating

Supply Ferquency

Hz

50/60

(Cold Coil) 1.0 x U

AC operation 50Hz

In - Rush

VA

70

P.f.


0.75

sealed

VA

8

P.f.


0.3

Auxiliary Contact thermal current rating

(1th)

VA

10

Rated operational power at AC 15 up to

125V

VA

500

(One million operations)

220V

VA

500


415V

VA

500

Auxiliary contact terminal capacity


mm2

Min 1 cable of 1 mm2 and max 2 cable for 2 mm2

Rated Insulation Voltage

(Ui)

V

660

Rated implulse withstand voltage

(Uimp)

kv

8

Ambient Air Temperature

Storage

°C

-20-+80


Operation

°C

-50 -+70

Operating Altitude

meter

3000

Operating Position


-+30° posseble in relation to normal vertical mounting plane

Mechanical Life (million operation on no-load)

Cyeles

20
