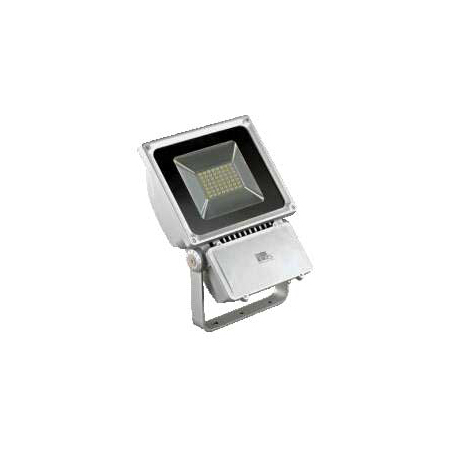

CS LED Lighting Products

CS LED Lighting Products
CS LED Lighting Products
Send Inquiry
Product Code : 01
Product Description

Technical Specifications

  • Housing material: High Pressure die cast aluminium housing with sealed toughened glass cover
  • Mounting system: Wall, ceiling and surface mounting with various adjustment
  • Light source: SMD LED array
  • Color temperature: Cool white 6500K
  • LED Efficacy: >120lm/W
  • System efficacy: Up to 90lm/W*
  • CRI: >80
  • Gear: Integrated constant current electronic driver
  • Nominal voltage: 240V AC, 50 Hz
  • Operating voltage range: 120V-280V
  • Operating temperature:-20° to 55°C
  • Total Harmonic Distortion: <10%
  • Power Factor: >0.95
  • Weather protection: IP66
  • Electrical safety: Class 1

Product Code

Voltage (V)

Mains current (A)

Wattage (W)

Dimensions
A

B

C

LTEF130WHPLED

240

0.140

30

226

186

125

LTEF150WHPLED

240

0.235

50

226

186

125

LTEF175WHPLED

240

0.350

75

283

235

140
