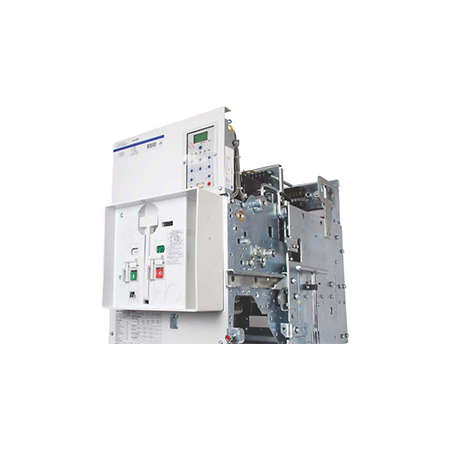

ACB AHA Series Power Distribution Components
Product Code : 02
Product Description
Technical Specifications
| Amperes Frame (based on IEC, BS or IS Type) number of poles 3 and 4 | 630 AH-6D | 800 AH-8D | 1000 AH-10D | 1250 AH-12D | 1600 AH-16D |
| Rated ultimate breaking capacity/ rated marking capacity 415V AC | 50/105 | 50/105 | 55/121 | 55/121 | 55/121 |
| Rated service breaking capacity/rated marking capacity 415V AC | 45/94.5 | 45/94.5 | 50/105 | 50/105 | 50/105 |
| 250V DC | 40/40 | 40/40 | 40/40 | 40/40 | 40/40 |
| Short time current lcw kA for 1 sec (3 sec) RMS | 45 (25) | 45 (25) | 50 (25) | 50 (25) | 50 (45) |
| Total breaking time/closing time (m.sec) | 30/40 | 30/40 | 30/40 | 30/40 | 30/40 |
